ELF40/67/110-00x: 2.92mm, 1.85mm, 1mm Edge Launch Connectors for the Digital Industry

40GHz, 67GHz, 110GHz

ELF40-001 (narrow profile) to more tightly couple differential lines on curved edges

ELF40-002 (standard profile) to use instead of current high priced offerings

Both Models with the same launch geometry and internal construction

• 2.92 mm Interface

• Top Ground Only

• 40 GHz Bandwidth

• Board Design Support Available

• Edge Launch

• Test Boards Available

• No Soldering Required

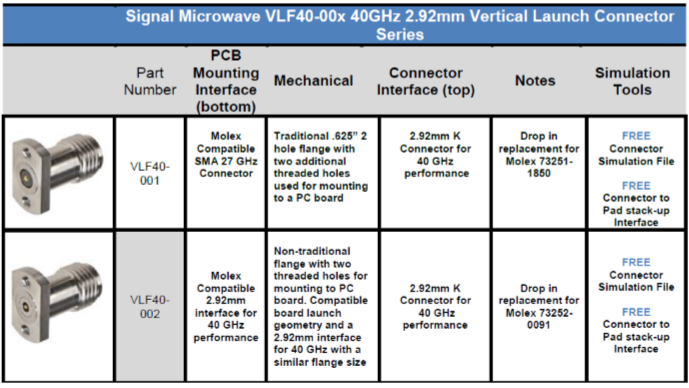

VLF40-00X: 2.92mm Connectors for the High Speed Digital Industry

• 40GHz Bandwidth

• 2.92mm Interface

• No Soldering Required

• Compression Fit

• Board Mounted

• Vertical Launch

• Free Connector pad Stack-up Interface

• Free Connector Simulation File
